Fairchild Imaging - HWK1910-A - 1080p60



The Fairchild Imaging HWK1910A is a high definition format, ultra-low-noise CMOS image sensor intended for surveillance and intelligent transportation applicaitons requiring high quality imaging under extremely low light and wide dynamic range conditions.



The device features an array of 5 transistor (5T) pixels on a 5.0m pitch with an active imaging area of 1920(H) x 1080(V) pixels.  The sensor runs in Rolling Shutter readout mode.  In addition, it also has circuitry that enables high dynamic range data collection in a single image.  The sensor supports user-programmable row start/stop control for region of interest (ROI) readout mode.











































The HWK1910A delivers extreme low-light sensitivity with a read noise of 1 electron RMS and low dark current.  These features, combined with 2.1 megapixel resolution, 60 fps imaging rates and the ability for auto calibration makes the HWK1910A easy to integrate in a variety of systems and ideally suited for a variety of high throughout, low light-level imaging applications.



Learn more

1/4
- IONOS IP Core Evaluation
- Reference Designs available
- Camera Development Platform
- FPGA based Image Processing
- High Performance with extendable FPGA-Boards

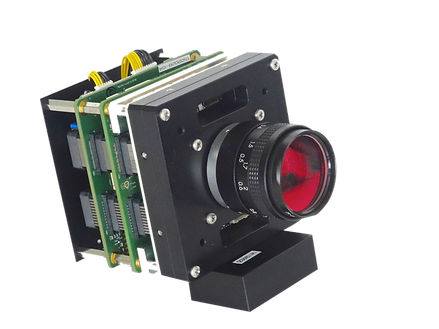

Fairchild HWK CDK
Movie

Fairchild HWK CDK
